General Info
Rulon® 123 is a glossy black non-abrasive material for softer mating surfaces, such as stainless steel. This material has excellent chemical resistance and is FDA and USDA Compliant. It is less expensive than Rulon® J, but is slightly less flexible and higher in wear. Can be used as a seal or bearing material. Good in water applications and compliant for FDA applications.
Click for more information on the complete line of Rulon Plastics
Key Properties
- Excellent for FDA/USDA, Steam, Wet & Dry Environments
- High Thermal Dissipation
- Static Dissipative
- Lower Cost than Rulon® J
- Maximum Pressure Velocity (continuous)(MPa x m/s): 10,000PV (.35)
- Maximum Pressure PSI (Static)(MPa): 1,000 PSI (6.9)
- Maximum Velocity – SFM (no load)m/s): 400 (2)
- Shaft Hardness Minimum: Rb25
- Shaft Finish Ra µin9 (µm): 8-16 (.2-.4)
- Shaft Material: Steel
Limitations
- Do Not Use in Ultra Dry, Vacuum Applications
- Not an Electrical Insulator
Applications
- Bushings & Bearings
- Pump & Valve Applications
- FDA Water Applications
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Note: Some Rulon® grades are made to order and have minimum order quantities.

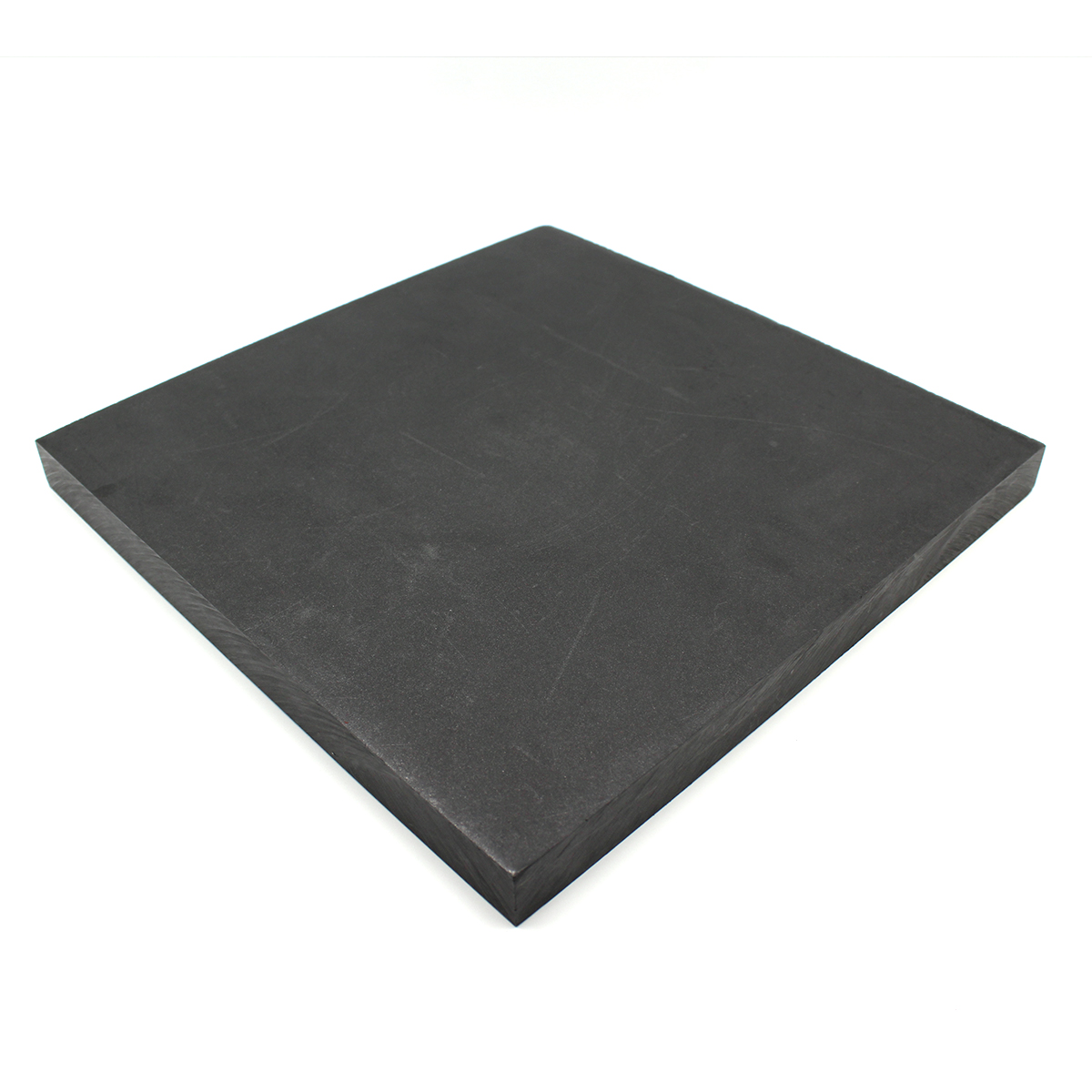

Sheet
Molded
Thickness up to 3.140”
Width & Length 24” x 24”
Skived Tape
Thickness up to .250”
Width 38”
Rod
Extruded Rod
Diameters Up to 3.000”
Length 10’ L
Molded Rod
Diameters Up to 47”
Length 12” L
Molded Tube
OD Outside Diameter Up to 47.000”
ID Inside Diameter Contact US
Length 12” L
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
