General Info
XtremeEPP ™ 2020 Heat Stabilized Nylon has a heat stabilizer that retards the loss of physical properties as temperature increases. This allows the material to function at approximately 10% higher temperatures than standard grades; meaning XtremeEPP ™ 2020 operating at 200°F will have approximately the same physical properties as a standard grade operating at 185°F. Maximum intermittent temperature for XtremeEPP ™ 2020 is 350°F and continuous operating temperature is 250°F (compared to 230°F for standard grades).
Key Properties
- Can Work at Higher Operating Temperatures
- Retains Physical Properties Under Higher Temperatures
- Light Weight
- Excellent Abrasion and Wear Resistance
- Easy to Machine
Limitations
- High Moisture Absorption
- Limited Resistance to Strong Acids & Alkalies
Applications
- Bushings and Bearings
- Metal Replacement Applications
- Rollers
- Sheaves
- Structural Components
- Wear Strip
Resin Trade Names
Manufacturer Trade Names
- XtremeEPP ™ 2020 Heat Stabilized Nylon
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Available Sizes

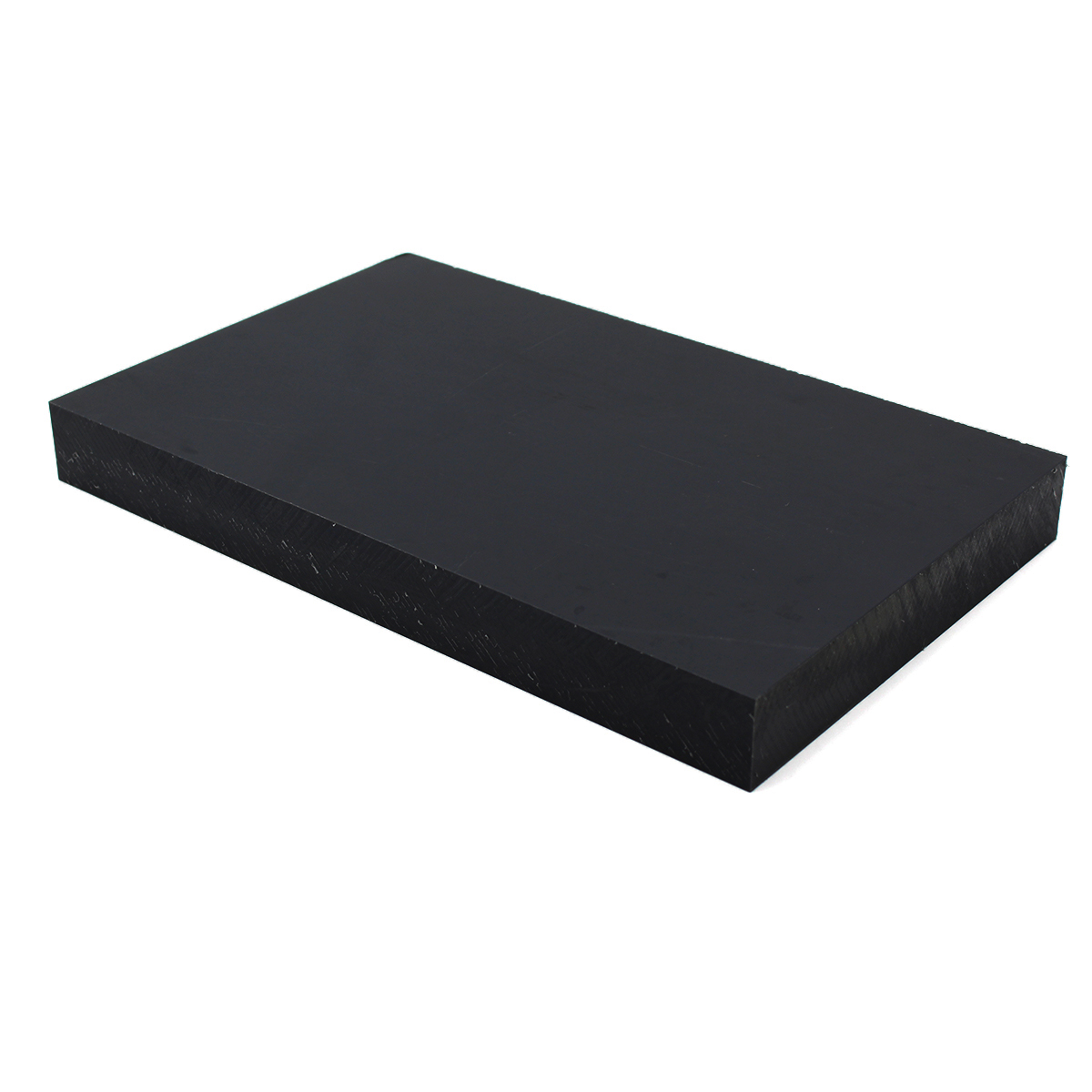

Sheet
Thickness .125 inch
Standard sheet size is 48.000 inch x 120.000 inch
Thickness .250 inch to 2.000 inch
Standard Sheet Sizes 24.000 inch x 48.000 inch, 28.000 inch x 57.000 inch, 36.000 inch x 48.000 inch and 48.000 inch x 120.000 inch
Thickness 2.250 inch to 4.000 inch
Standard Sheet Sizes 24.000 inch x 48.000 inch and 48.000 inch x 120.000 inch
Thickness 6.000 inch and 8.000 inch
Standard Sheet Size 24.000 inch x 48.000 inch
Rod
Diameter 1.000 inch to 28.000 inch
Standard Lengths 24.000 inch, 48.000 inch and 120.000 inch depending on size

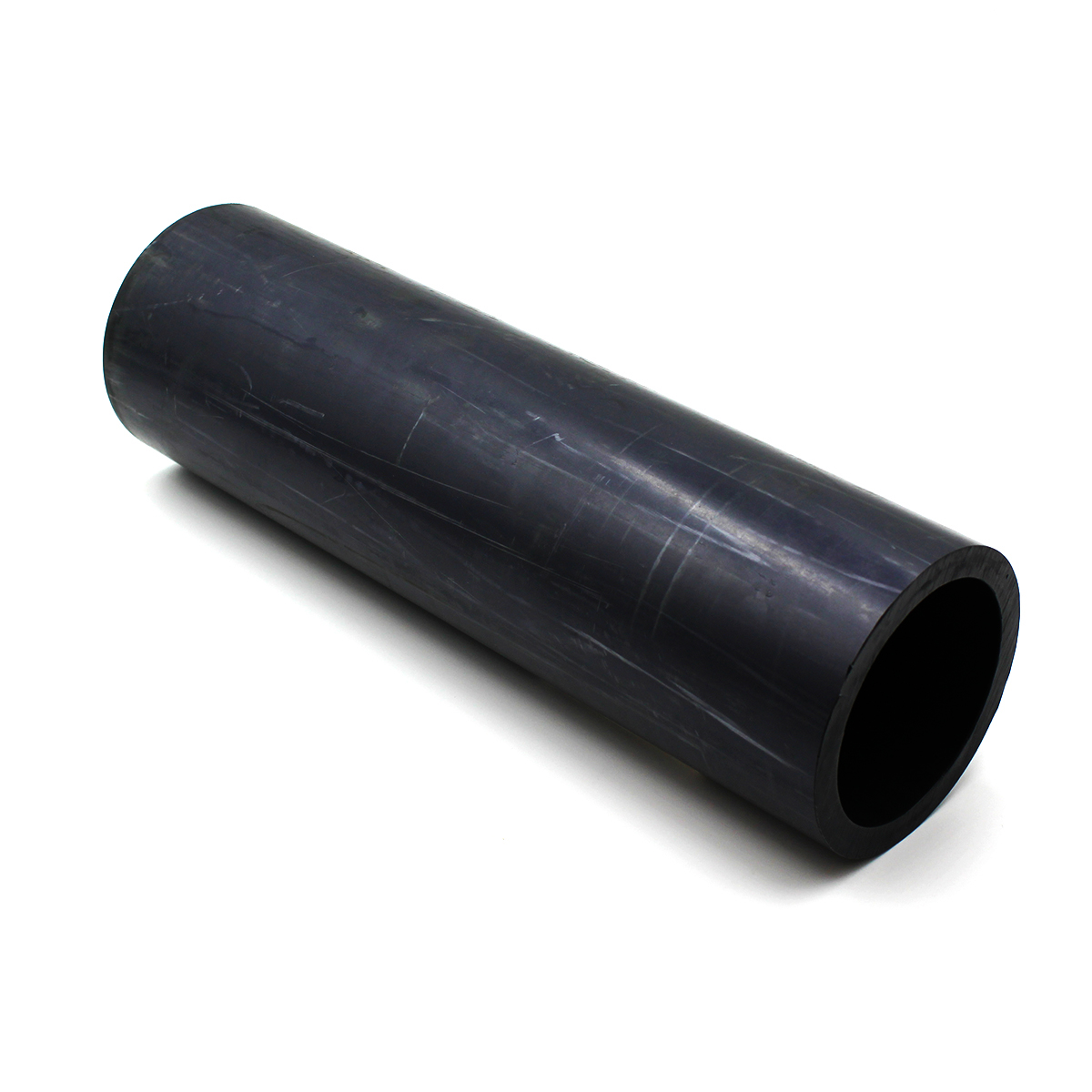

Tube
Outside Diameter 2.000 inch to 40.000 inch
Inside Diameter .750 inch to 30.500 inch
Standard Lengths 26.000 inch, 39.000 inch and 52.000 inch depending on size
Discs
Outside Diameter 12.250 inch to 84.000 inch
Thicknesses 2.000 inch and up
Rings
Outside Diameter 12.250 inch to 84.000 inch
Inside Diameter Call for Availability
Thicknesses 2.000 inch and up
Custom Cast Near Net Shapes and Cast Parts Available Upon Request
Some sizes may have minimum order quantities.
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
