ZELUX ® M Polycarbonate (Machine Grade)

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

Unfilled Polycarbonate is a tough, transparent engineering thermoplastic which offers very high impact strength and high modulus of elasticity. It also has a high heat deflection temperature and absorbs very little moisture. These properties, plus good low frequency and high voltage insulating characteristics, make polycarbonate a prime material for electrical and electronic components. Zelux® offers a high Dielectric Strength of 760 v/mil and an excellent flammability rating (UL Yellow Card file E240206).

Zelux® M provides outstanding dimensional stability due to Westlake's proprietary isotropic stress-relieving process, helping reduce headaches and extra machine time due to warping.

Zelux® M is easy to fabricate, paint, and glue. Its strength, impact resistance and transparency (Zelux W - Window Grade Only for transparency) also make it an ideal material for certain transparent structural applications.

Zelux^® M is machine-grade polycarbonate, while Zelux^® W is window-clear material for applications where transparency is an important consideration.

Key Properties

Optical clarity (window grade)
Excellent impact resistance
Excellent dimensional stability due to Westlake's proprietary isotropic stress-relieving process
Low moisture absorption
Easy to machine
Good strength and stiffness over a wide range of service temperatures
Good electrical insulating properties
Easy to fabricate, paint and glue

Limitations

Applications

Site glasses
Viewing windows
Impact shields
Fluid handling components
Manifolds Scientific and analytical instrument components
Electrical components
Housings and covers

Resin Trade Names

Manufacturer Trade Names

ZELUX ® M

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

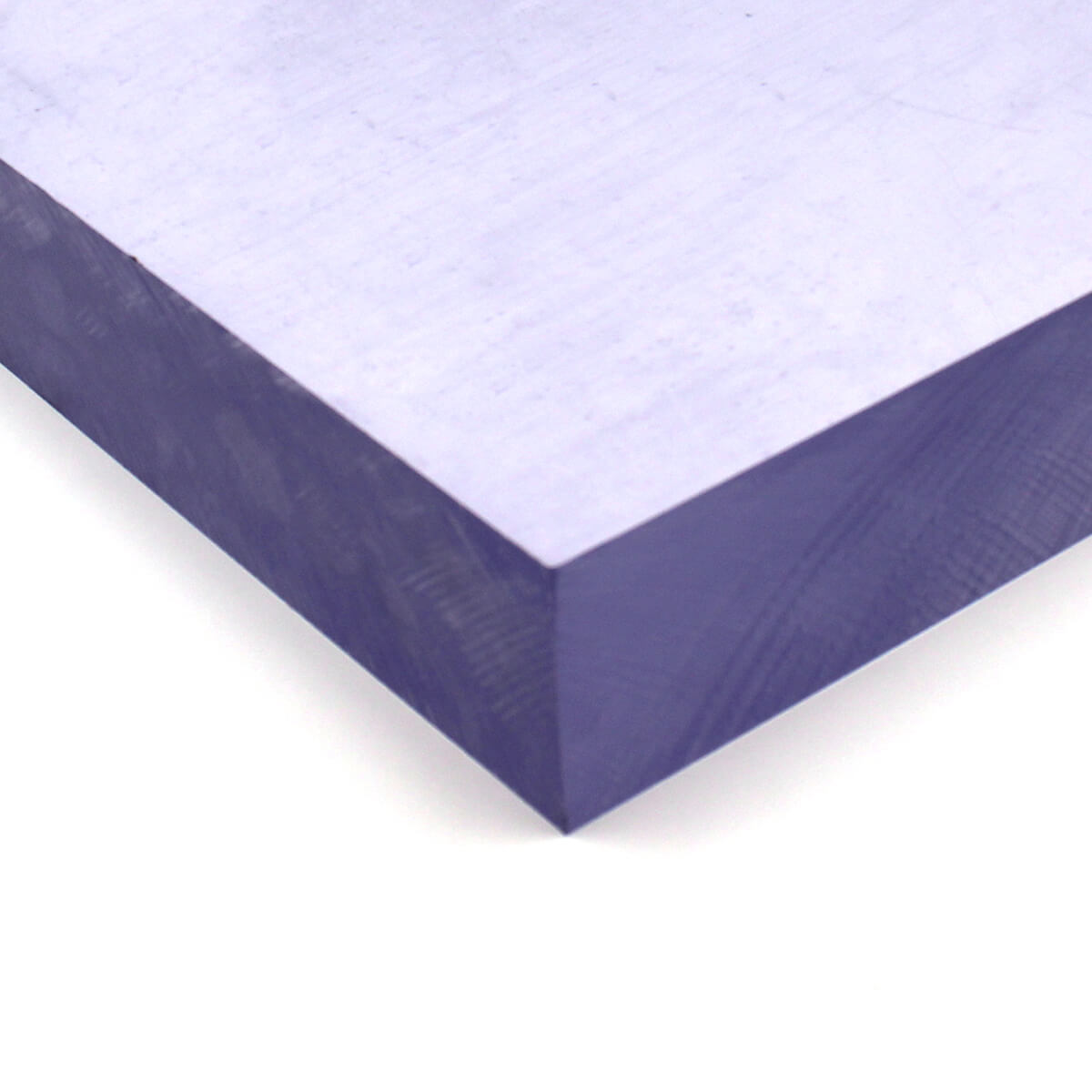

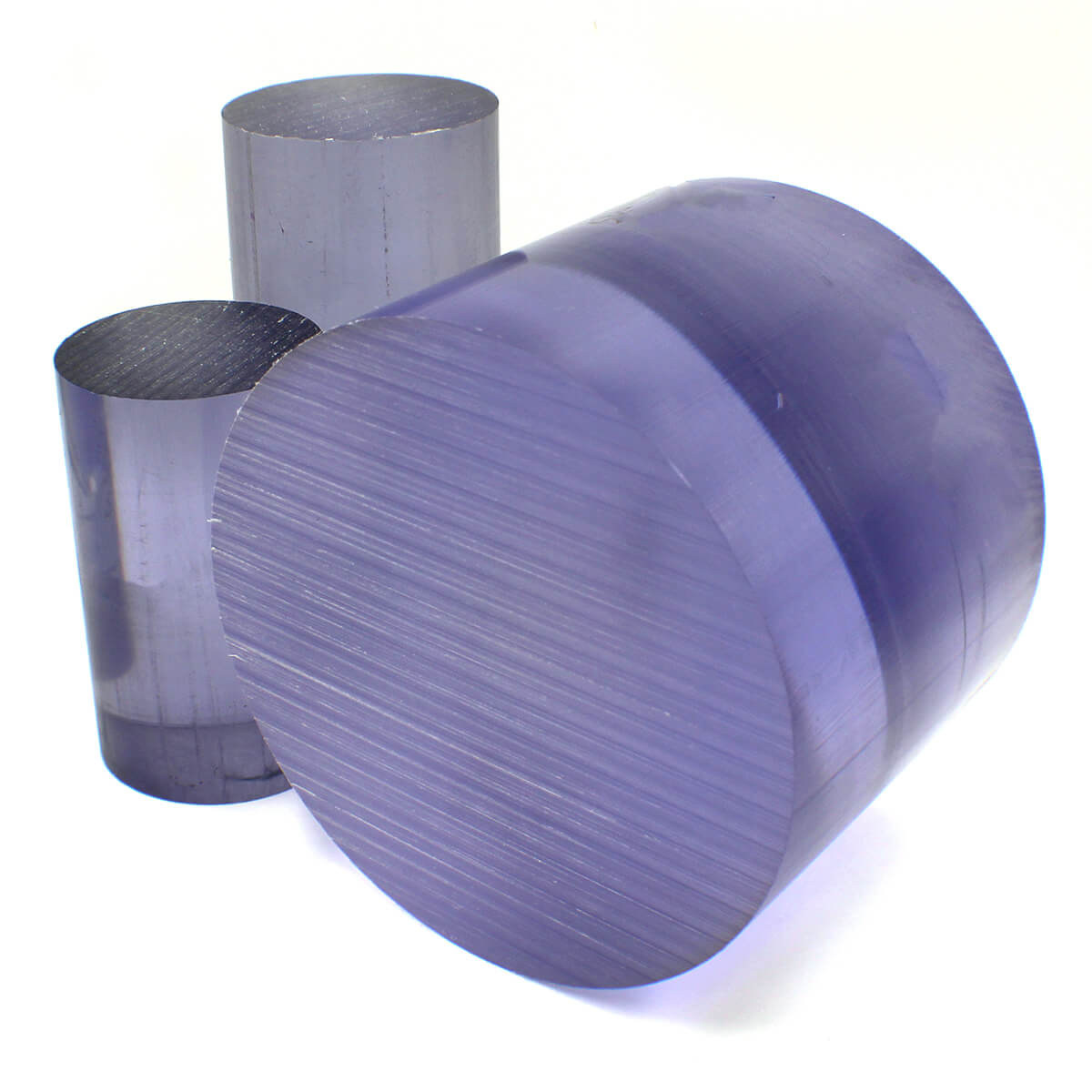

Sheet, Rod, and Film Only Compression Sheet Sizing Thickness x Width x Length 0.375 Inch x 48.000 Inch x 96.000 Inch 0.500 Inch x 48.000 Inch x 96.000 Inch 0.750 Inch x 48.000 Inch x 96.000 Inch 1.000 Inch x 48.000 Inch x 96.000 Inch 1.250 Inch x 48.000 Inch x 96.000 Inch 1.500 Inch x 48.000 Inch x 96.000 Inch 1.750 Inch x 48.000 Inch x 96.000 Inch 2.000 Inch x 48.000 Inch x 96.000 Inch 2.250 Inch x 48.000 Inch x 96.000 Inch 2.500 Inch x 48.000 Inch x 96.000 Inch 2.750 Inch x 48.000 Inch x 96.000 Inch 3.000 Inch x 48.000 Inch x 96.000 Inch 3.250 Inch x 48.000 Inch x 96.000 Inch 3.500 Inch x 48.000 Inch x 96.000 Inch 3.750 Inch x 48.000 Inch x 96.000 Inch 4.000 Inch x 48.000 Inch x 96.000 Inch Extruded Sheet Sizing Thickness x Width x Length 0.500 Inch x 24.000 Inch x 48.000 Inch 0.750 Inch x 24.000 Inch x 48.000 Inch 1.000 Inch x 24.000 Inch x 48.000 Inch 1.250 Inch x 24.000 Inch x 48.000 Inch 1.500 Inch x 24.000 Inch x 48.000 Inch 1.750 Inch x 24.000 Inch x 48.000 Inch 2.000 Inch x 24.000 Inch x 48.000 Inch 2.500 Inch x 24.000 Inch x 48.000 Inch 3.000 Inch x 24.000 Inch x 48.000 Inch 48 Inch Width by 96 Length Thickness x Width x Length 0.030 Inch x 48.000 Inch x 96.000 Inch 0.060 Inch x 48.000 Inch x 96.000 Inch 0.080 Inch x 48.000 Inch x 96.000 Inch 0.125 Inch x 48.000 Inch x 96.000 Inch 0.250 Inch x 48.000 Inch x 96.000 Inch Rod Sizing Diameter x Length 2.250 Inch x 48.000 Inch 2.500 Inch x 48.000 Inch 2.750 Inch x 48.000 Inch 3.000 Inch x 48.000 Inch 3.250 Inch x 48.000 Inch 3.500 Inch x 48.000 Inch 3.750 Inch x 48.000 Inch 4.000 Inch x 48.000 Inch 4.250 Inch x 48.000 Inch 4.500 Inch x 48.000 Inch 4.750 Inch x 48.000 Inch 5.000 Inch x 48.000 Inch 5.250 Inch x 48.000 Inch 5.500 Inch x 48.000 Inch 5.750 Inch x 48.000 Inch 6.000 Inch x 48.000 Inch 6.250 Inch x 48.000 Inch 6.500 Inch x 48.000 Inch 6.750 Inch x 48.000 Inch 7.000 Inch x 48.000 Inch 8.000 Inch x 48.000 Inch 9.000 Inch x 48.000 Inch 10.000 Inch x 48.000 Inch 11.000 Inch x 48.000 Inch 12.000 Inch x 48.000 Inch 96 Inch Length Diameter x Length 0.500 Inch x 48.000 Inch 1.000 Inch x 48.000 Inch 1.250 Inch x 48.000 Inch 1.500 Inch x 48.000 Inch 1.750 Inch x 48.000 Inch 2.000 Inch x 48.000 Inch Film Sizing Thickness x Width 0.002 Inch x 26.000 Inch 0.005 Inch x 26.000 Inch 0.010 Inch x 26.000 Inch 0.015 Inch x 26.000 Inch 0.020 Inch x 26.000 Inch Custom Size Sheet, Rod and Film available on a custom basis, contact us with your custom requirements.

Available Colors

Machine Grade Clear or Black

Safety Data Sheet

Typical Properties of ZELUX ® M Polycarbonate (Machine Grade)

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			PC Polycarbonate
Trade Name			ZELUX ® M Polycarbonate (Machine Grade)
Additives			Unfilled
Color			Machine Grade Clear or Black
Manufacturer			Westlake
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.2
	ASTM D792	lb/in³	0.043
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.2
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.35
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	9,900
Tensile Modulus	ASTM D638	psi	335,000
Tensile Elongation at Break	ASTM D638	%	135
Flexural Strength	ASTM D790	psi	14,100
Flexural Modulus	ASTM D790	psi	339,000
Hardness	ASTM D785	NA	Rockwell M70 / R118
IZOD Impact-Notched	ASTM D256	ft-lb/in	17
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3.8
Heat Deflection Temp	ASTM D648	°C at 264 psi	142
	ASTM D648	°F at 264 psi	288
Max Continuous Operating Temp		°C	121
		°F	250
Minimum Operating Temp		°C	-30
		°F	-22
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.6
	ASTM C117	x 10^4 cal/cm-sec-°C	5.5
Flammability Rating	UL94	Flammability Rating @9.5mm Thickness (.37 in) NOTE <9.5mm (HB)	V-0 @ .37”
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	760
Dielectric Constant at 1 MHz	ASTM D150	NA	2.96
Dissipation Factor at 1 MHz	ASTM D150	NA	2.9
Surface Resistivity	ASTM D257		10^17
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

ZELUX® is a registered trademark of Westlake Plastic Company
