TUFFAK ® FD FDA Polycarbonate (Formerly Makrolon ®)

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

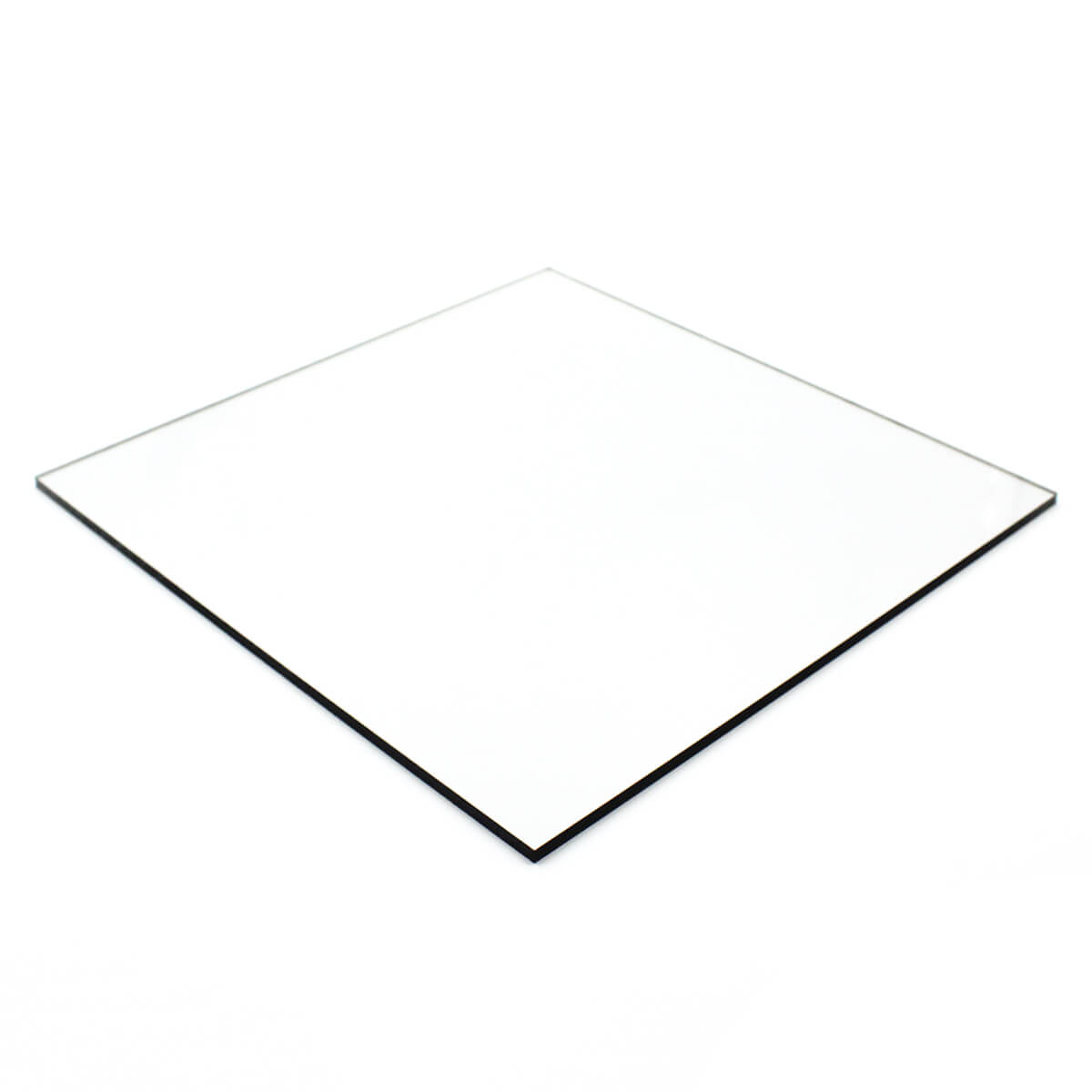

TUFFAK FD polycarbonate sheet complies with FDA requirements for food contact. This non-UV stable sheet offers excellent optical clarity, good heat resistance, and high impact strength.

Click for more information on the complete line of Polycarbonate Plastics

Key Properties

FDA Compliant
.060” thick UL 94 HB
.394 thick UL 94 V-0

Limitations

Not UV Resistant
Limited Chemical Resistance
Poor Scratch Resistance

Applications

Bassinets
Bulk Food Bins
Candy Molds
Hospital Trays
Incubators
Limited Use Autoclave Packaging
Machine Guards
Medical Device Storage Containers
Sneeze Guards

Resin Trade Names

Makrolon®

Manufacturer Trade Names

TUFFAK® FD Polycarbonate

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

THICKNESS 0.060 to 0.500 inch WIDTH 48.000 to 96.000 inch LENGTH 48.000 to 96.000 inch Boedeker offers cut to size service on all in-stock items and same day shipping. If you do not see the size you are looking for contact us for alternative options.

Available Colors

0A00 – Transparent (Gauges: All)

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TUFFAK ® FD FDA Polycarbonate (Formerly Makrolon ®)

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			PC Polycarbonate
Trade Name			TUFFAK® FD Polycarbonate
Additives			Proprietary Additives
Color			Transparent Clear
Manufacturer			Plaskolite
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.2
	ASTM D792	lb/in³	0.043
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.15
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	9,000
Tensile Modulus	ASTM D638	psi	340,000
Tensile Elongation at Break	ASTM D638	%	110
Flexural Strength	ASTM D790	psi	13,500
Flexural Modulus	ASTM D790	psi	345,000
Compressive Strength	ASTM D695	psi	12,500
Compressive Modulus	ASTM D695	psi	345,000
Hardness	ASTM D785	NA	Rockwell R118
IZOD Impact-Notched	ASTM D256	ft-lb/in	18
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3.75
Heat Deflection Temp	ASTM D648	°C at 264 psi	132
	ASTM D648	°F at 264 psi	270
Max Continuous Operating Temp		°C	121
		°F	250
Minimum Operating Temp		°C	-30
		°F	-22
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.35
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	380
Dielectric Constant at 1 MHz	ASTM D150	NA	3.17
Dissipation Factor at 1 MHz	ASTM D150	NA	0.001
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Makrolon® is a registered trademark of Covestro. TUFFAK® is a registered trademark of Plaskolite.
