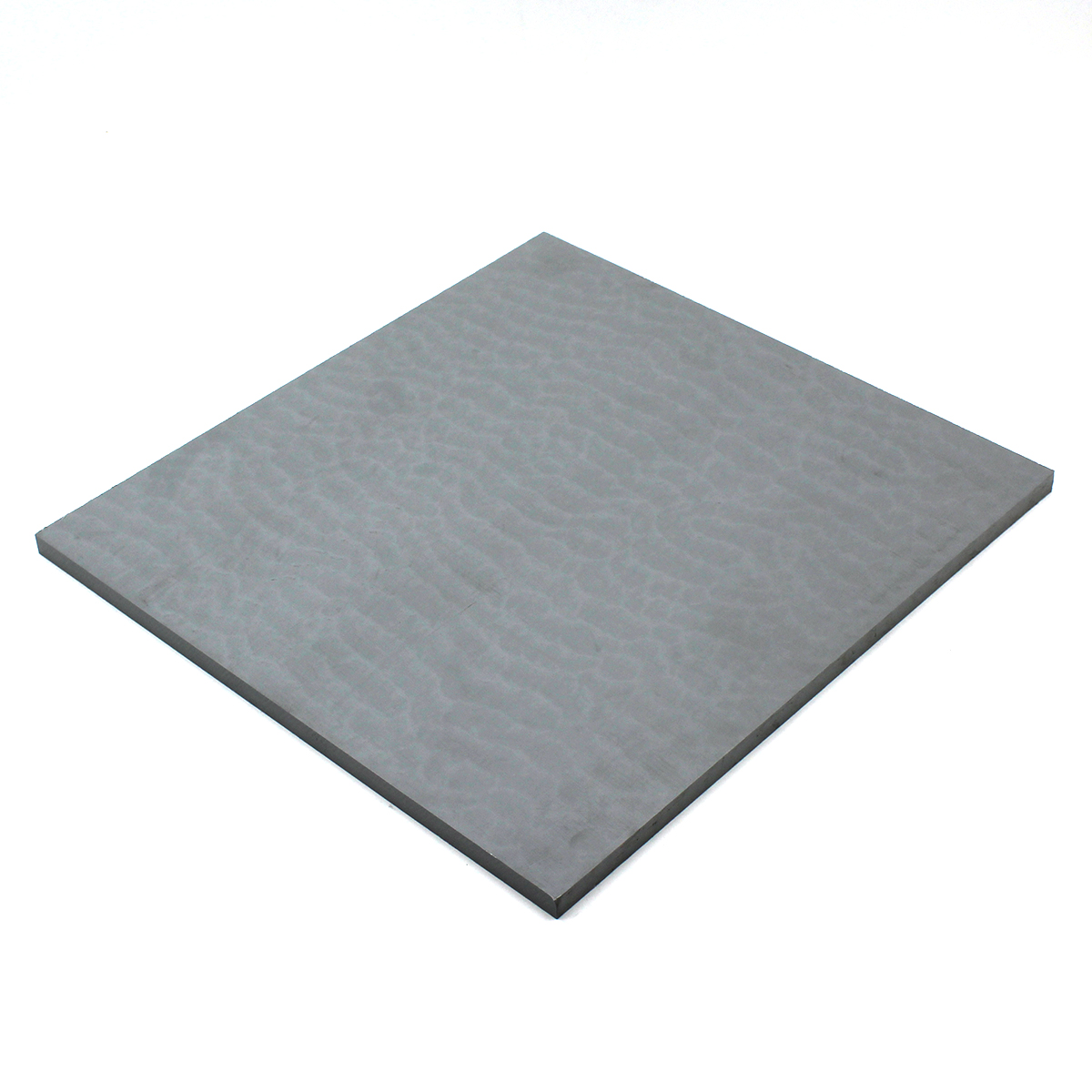

Semitron ® MP 370 PEEK

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

Semitron® MP 370 Ceramic Filled Modified PEEK offers more choices in the design and manufacture of precision test sockets for the semiconductor manufacture industry. While maintaining the same excellent moisture absorption and high thermal resistance of PEEK, Semitron® MP 370 provides greater strength and dimensional stability. This custom formulation allows finer and cleaner detail due to it’s excellent machinability.

Click for more information on the complete line of Semitron Plastics

Key Properties

Exceptional machinability - very small holes and tight hole patterns are possible with sockets
Low internal stresses and no "soft center" problems associated with injection molded blanks
Strength and stiffness that exceed unfilled PEEK materials
Very low moisture absorption

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Precision Test Sockets for Small Hole and Tight Pattern Designs

Resin Trade Names

Manufacturer Trade Names

Semitron® MP 370

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Light Gray

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Semitron ® MP 370 PEEK

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			Semitron® MP 370
Additives			Ceramic
Color			Light Gray
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.62
	ASTM D792	lb/in³	0.059
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.11
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.5
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	11,500
Tensile Modulus	ASTM D638	psi	640,000
Tensile Elongation at Break	ASTM D638	%	3
Flexural Strength	ASTM D790	psi	16,750
Flexural Modulus	ASTM D790	psi	625,000
Compressive Strength	ASTM D695	psi	18,200
Compressive Modulus	ASTM D695	psi	600,000
Hardness	ASTM D785	NA	Rockwell M98
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.4
Wear K Factor	QTM 55010	in³-min/ft-lbs-hr	>500
Limiting PV	QTM 55007	psi-fpm	2,200
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	2.5
Heat Deflection Temp	ASTM D648	°C at 264 psi	149
	ASTM D648	°F at 264 psi	300
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
Max Continuous Operating Temp		°C	249
		°F	480
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	2.36
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	376
Dielectric Constant at 1 MHz	ASTM D150	NA	4.13
Dissipation Factor at 1 MHz	ASTM D150	NA	0.004
Surface Resistivity	ASTM D257	ohm/square	>10^13
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Semitron® is a registered trademark of Quadrant Engineering Plastic Products.
