General Info
Semitron® HPV is an extruded Static Dissipative PEEK based polymer system developed specifically for electronic fixture applications that require a high degree of dimensional stability over an extended thermal range as well as precise machine-ability.
Click for more information on the complete line of Semitron Plastics
Please note that this product is not stocked in the US at this time and minimums and longer lead times will apply.
Key Properties
- Delivers a flexural modulus of 760,000 psi along with a melting point of 644F
- Extremely low moisture absorption of 0.05% @ 24 hours and 0.35% @ saturation
Limitations
- Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF
Applications

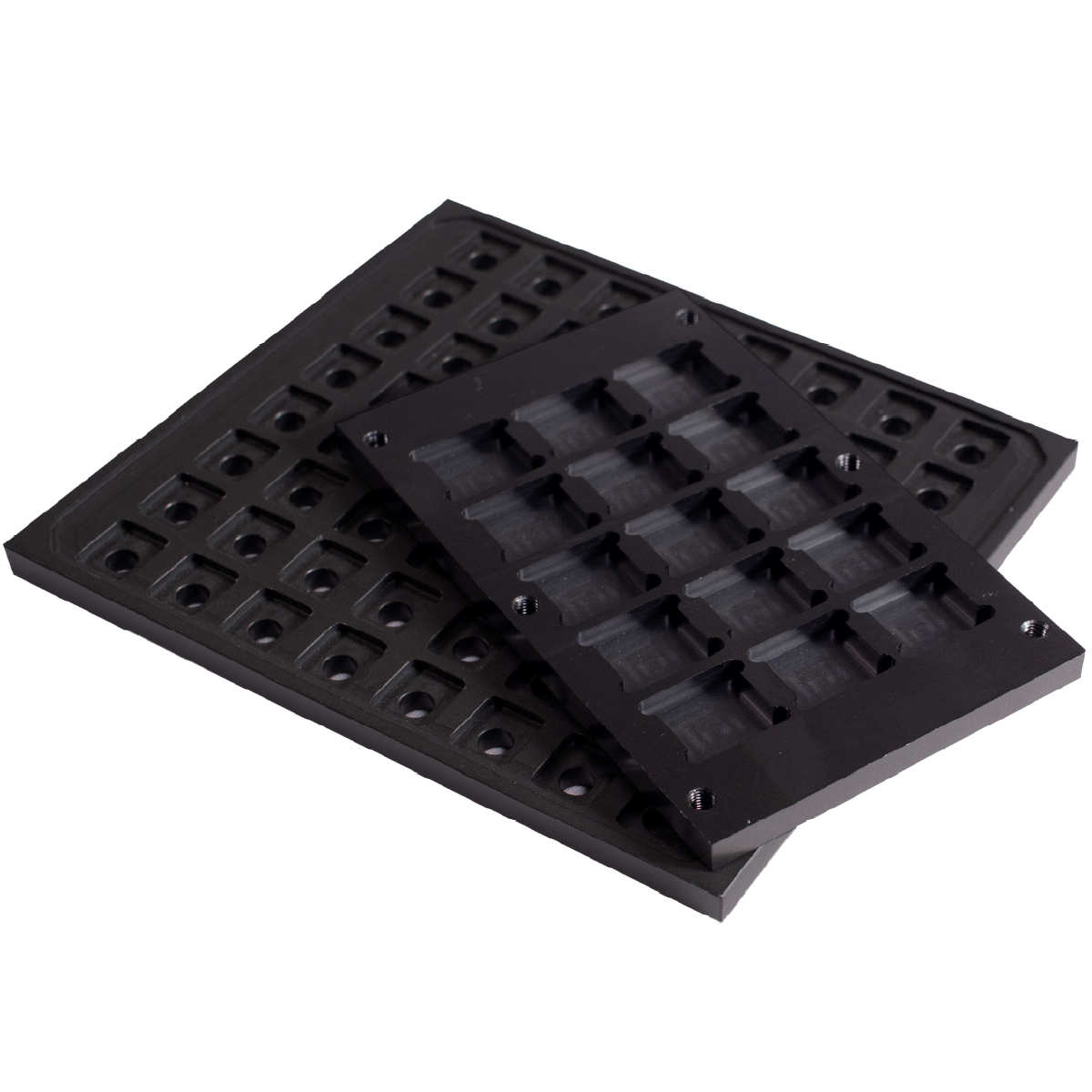

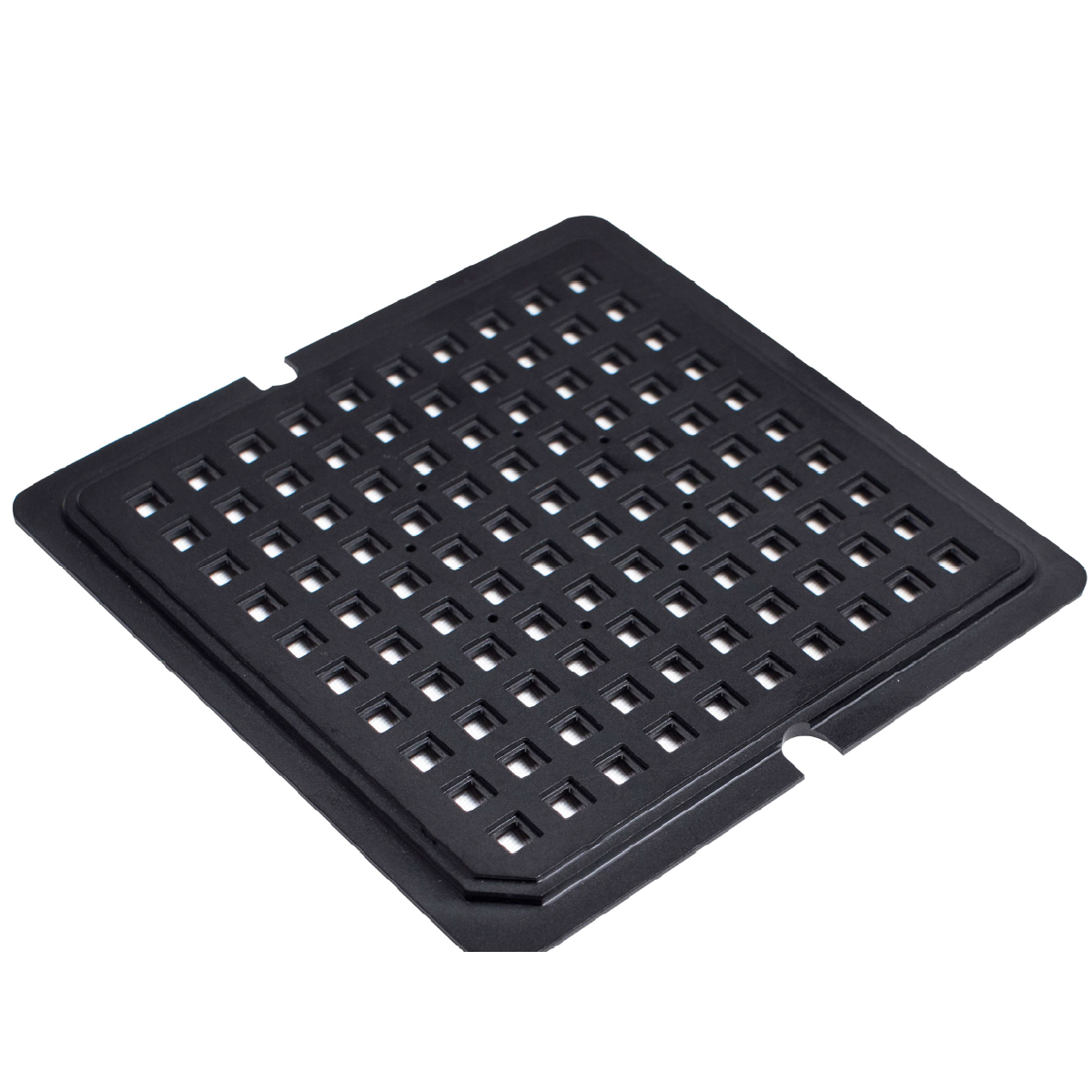

- Integrated Chip Trays and Carriers
- PCB Board Manufacturing and Handling
- Fixturing for Electronic Assemblies
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Please note that this product is not stocked in the US at this time and minimums and longer lead times will apply.

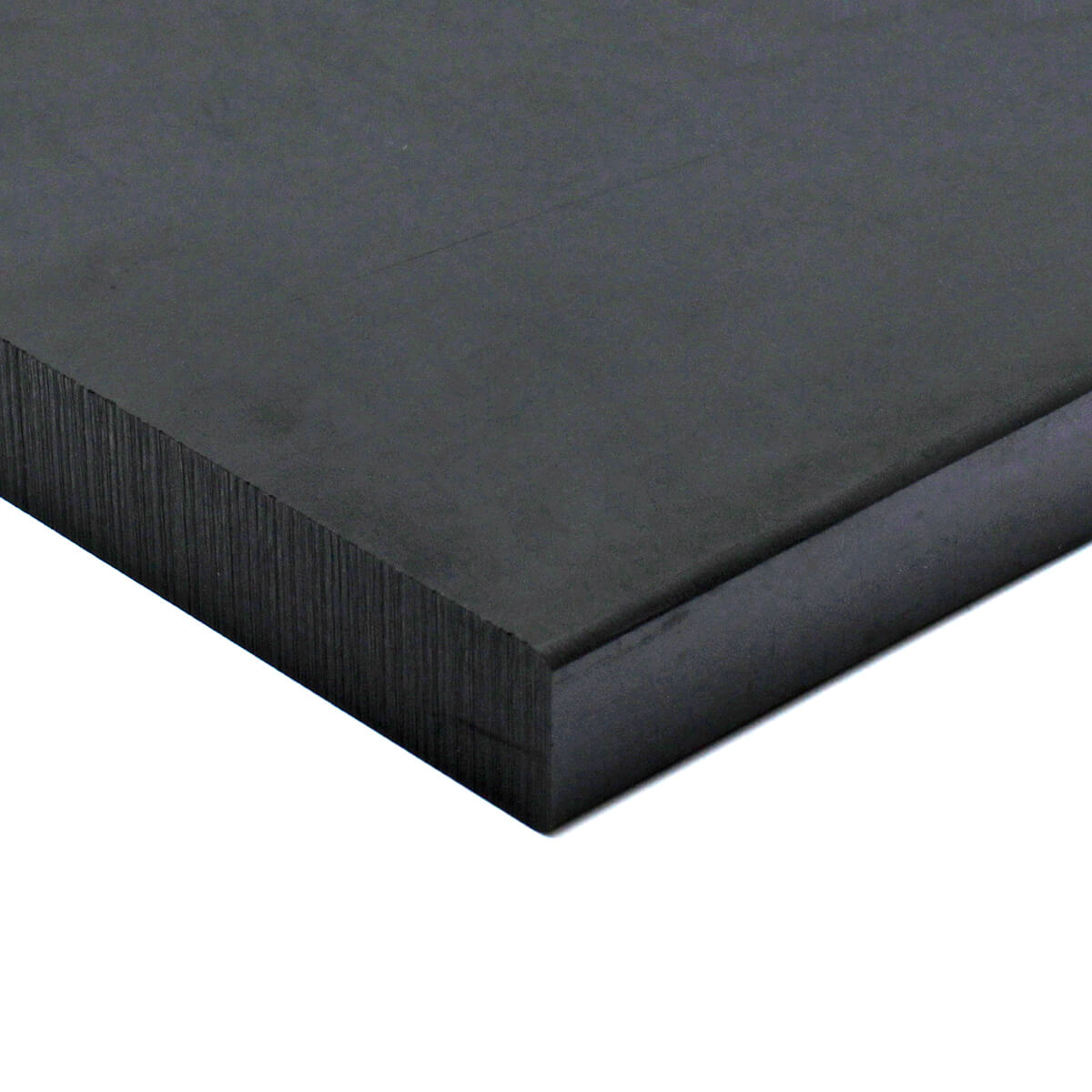

Thickness x Width x Length
5 mm x 525 mm x 1000 mm* / 0.2 in x 20.6 in x 40 in*
6 mm x 525 mm x 1000 mm* / 0.24 in x 20.6 in x 40 in*
8 mm x 525 mm x 1000 mm* / 0.31 in x 20.6 in x 40 in*
10 mm x 525 mm x 1000 mm* / 0.39 in x 20.6 in x 40 in*
12 mm x 625 mm x 1000 mm* / .47 in x 24.6 in x 40 in*
15 mm x 625 mm x 1000 mm* / .59 in x 24.6 in x 40 in*
16mm x 625 mm x 1000 mm* / .63 in x 24.6 in x 40 in*
20 mm x 625 mm x 1000 mm* / .79 in x 24.6 in x 40 in*
25 mm x 625 mm x 1000 mm* / .98 in x 24.6 in x 40 in*
30 mm x 625 mm x 1000 mm* / 1.18 in x 24.6 in x 40 in*
Rod Sizes
31.75 mm to 101.6 mm* / 1.25 to 4.00 in Diameters Are Available*
*0.5 mm must be machined from surface to achieve listed surface resistivity
*Please note that this product is not stocked in the US at this time and minimums and longer lead times will apply.
Contact Us for availability on rod and other shapes or machined parts.
