King Polypropylene PP

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

King KPC Polypropylene is a natural unfilled PP produced using King’s proprietary K-Stran process for unsurpassed flatness and quality up to 1” in thickness, and available in up to 12” thick in compression molded sheet. King KPC Polypropylene offers excellent resistance to chemicals, organic solvents, degreasing agents and electrolytic products. It also has outstanding stain resistance with low moisture absorption. King KPC Polypropylene has exceptional impact resistance at room temperature, with good physical properties, low specific gravity, and is stiffer than King KPC LDPE or King KPC HDPE. King KPC Polypropylene offers a good balance of thermal, chemical and electrical properties with moderate strength. It possesses a good strength to weight ratio.

Click for more information on the complete line of Polypropylene Plastics

Key Properties

  • Excellent Chemical Resistance
  • Light Weight
  • Low Moisture Absorption
  • FDA & USDA Compliant

Limitations

  • High Heat Environments
  • High Loads
  • Subject to Creep, Cold Flow
  • Thermal Expansion
  • Tight Tolerance Applications

Applications

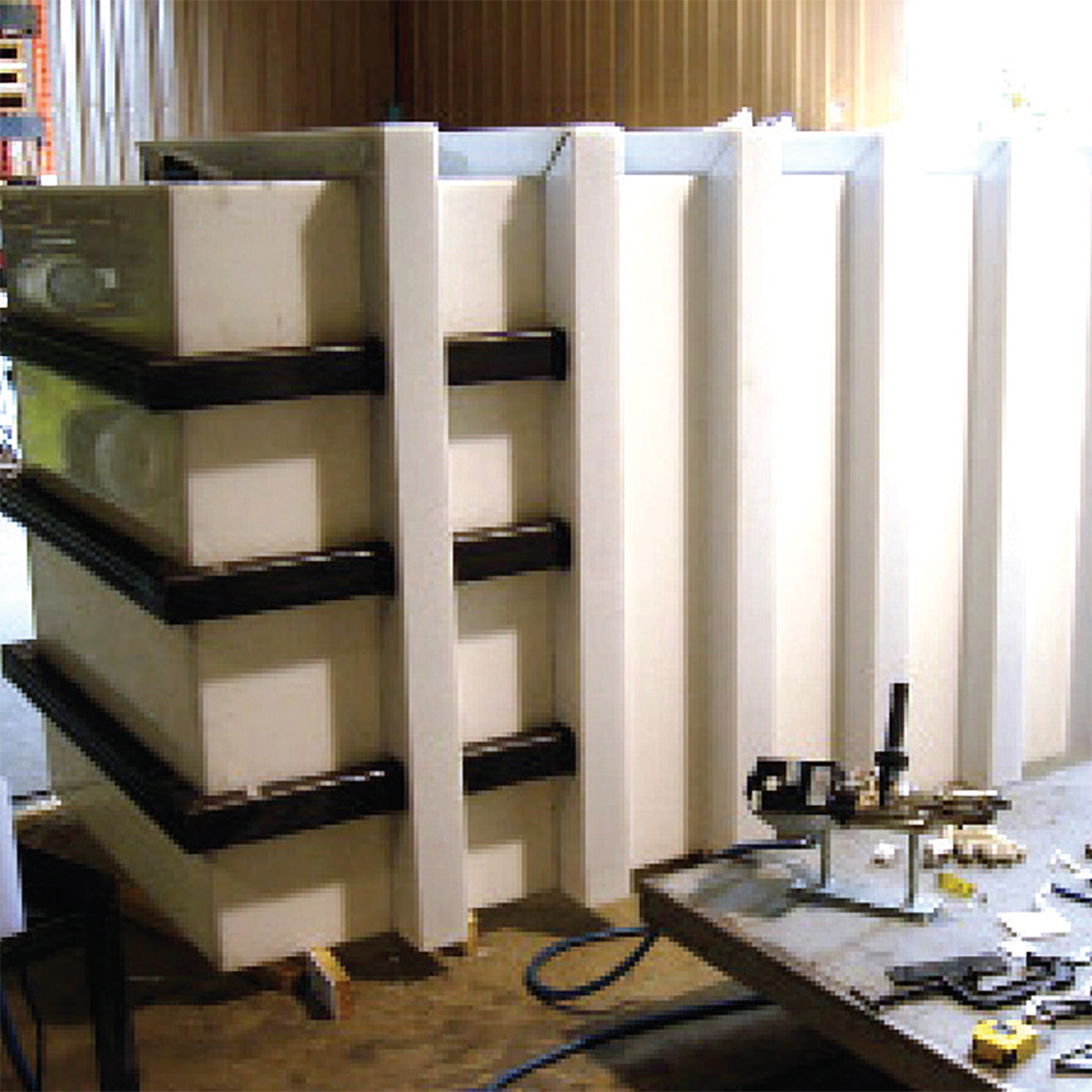

  • Containment Tanks and Covers
  • Ducts and Hoods
  • Plating Barrels
  • Valve and Pump Components

Resin Trade Names

Manufacturer Trade Names

  • King Polypropylene

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Thickness .125” (3.175 mm) to 2.000” (50.8 mm) Width & Length 48.000” (1219.2 mm) x 96.000” (2438.4 mm) Thickness 2.500” (63.5 mm) to 12.000” (304.8 mm) Width & Length 24.000” (609.6 mm) x 48.000” (1219.2 mm) Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Natural

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of King Polypropylene PP

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PP Polypropylene
Trade Name King Polypropylene
Additives Unfilled
Color Natural
Manufacturer King Plastic Corp.
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.905
  ASTM D792 lb/in³ 0.033
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 4,100
Tensile Elongation at Break ASTM D638 % 550
Flexural Modulus ASTM D790 psi 270,000
Hardness ASTM D785 NA Shore D66
IZOD Impact-Notched ASTM D256 ft-lb/in 1.3
THERMAL
Property Test Unit of Measure Value
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -10
  °F 14
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF Yes
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $
Machinability 2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

King Polypropylene is a registered trademark of King Plastic Corporation.
