Ketron ® HPV PEEK Bearing Grade

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

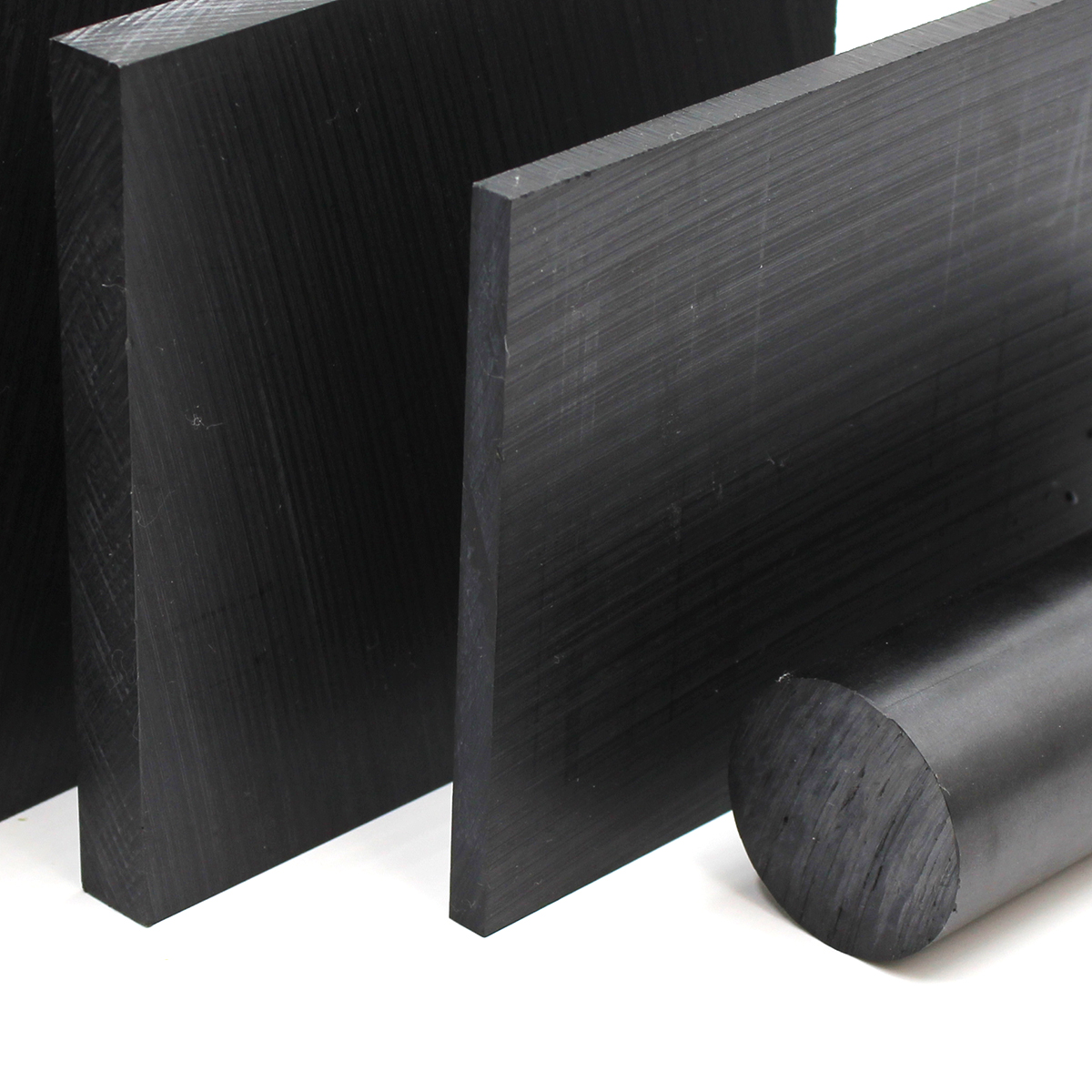

KETRON® Extruded HPV PEEK (BEARING GRADE) - Carbon fiber reinforced with graphite and PTFE lubricants, with the lowest coefficient of friction and the best machinability for all PEEK grades. An excellent combination of low friction, low wear, high LPV, low mating part wear and easy machining, make it ideal for aggressive service bearings.

Click for more information on the complete line of Ketron PEEK Plastic Products

Key Properties

Excellent wear resistance
High Limiting Pressure Velocity PV value
High mechanical strength & stiffness
Low Coefficient of Friction COF

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Bearing & Wear Components
Bushings & Bearings
Oil & Gas Components
Pump Case Wear Rings
Pump Throat Bushings
Rollers
Thrust Washers

Resin Trade Names

Manufacturer Trade Names

Ketron® HPV PEEK

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Ketron ® HPV PEEK Bearing Grade

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			Ketron® HPV PEEK
Additives			Bearing Grade Additives
Color			Black
Manufacturer			Quadrant
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.44
	ASTM D792	lb/in³	0.052
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.05
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.3
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	11,000
Tensile Modulus	ASTM D638	psi	850,000
Tensile Elongation at Break	ASTM D638	%	2
Flexural Strength	ASTM D790	psi	27,500
Flexural Modulus	ASTM D790	psi	1,100,000
Compressive Strength	ASTM D695	psi	20,000
Compressive Modulus	ASTM D695	psi	500,000
Hardness	ASTM D785	NA	Rockwell M85
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.7
Dynamic Coefficient of Friction	QTM 55007 (Dry vs Steel)	NA	0.21
Wear K Factor	QTM 55010	in³-min/ft-lbs-hr	100
Limiting PV	QTM 55007	psi-fpm	20,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	1.7
Heat Deflection Temp	ASTM D648	°C at 264 psi	195
	ASTM D648	°F at 264 psi	383
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
Max Continuous Operating Temp		°C	250
		°F	482
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.7
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$$$
Machinability			7

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Ketron® is a registered trademark of Quadrant Engineering Plastic Products.
