TECASINT ® 2011 PI

Compliance Info

Slide 1 of 1, currently active

General Info

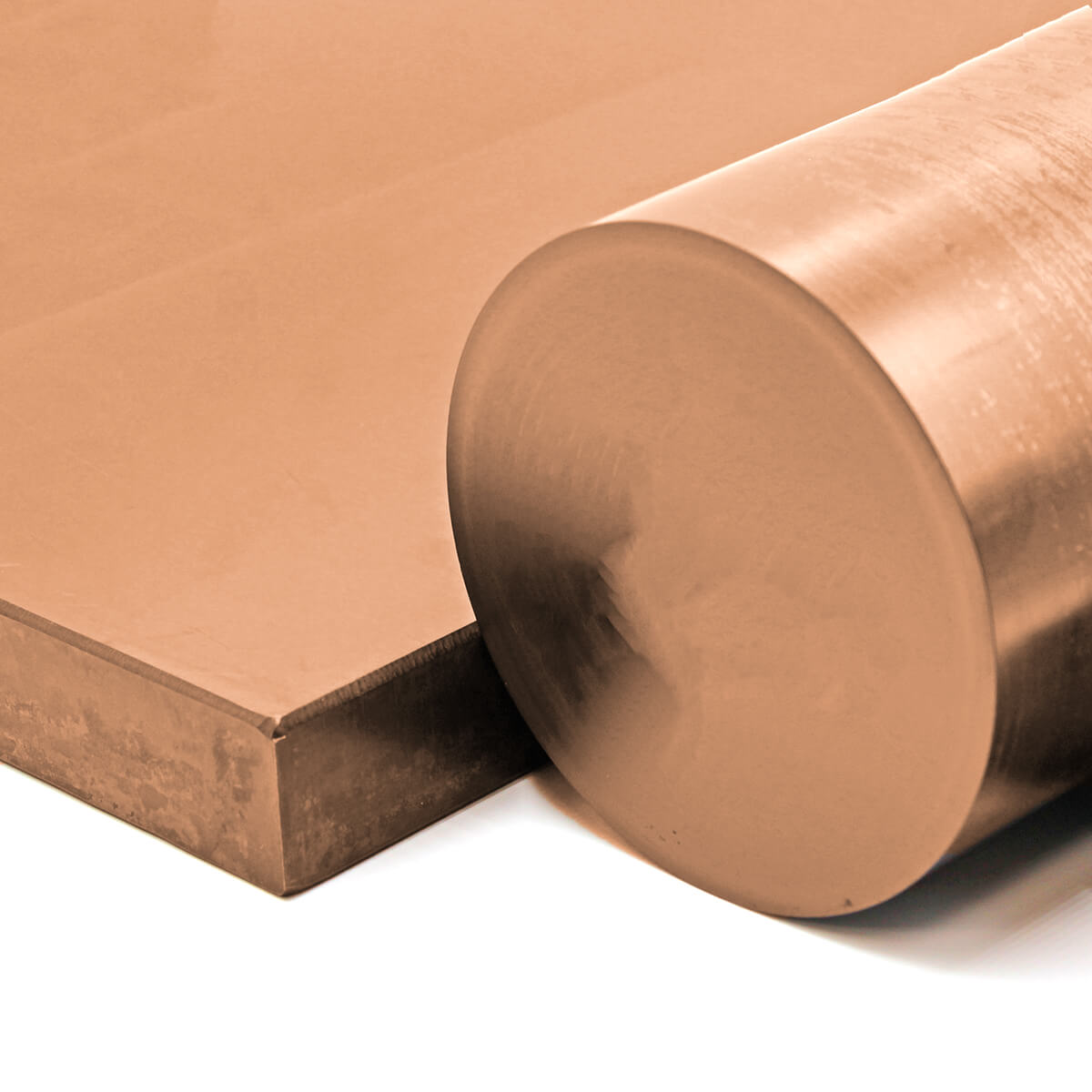

TECASINT® 2011 is an unfilled PI Polyimide high purity polymer with low outgassing with excellent long-term thermal stability, outstanding wear resistance, high creep resistance, and strength up to its continuous use temperature of 536° F.

Key Properties

Excellent Creep Resistance
Excellent Long-Term Thermal Stability
High Purity Characteristics
High Strength and Stiffness Properties
Only Extremely Low Levels of Extractables And Ionic Impurities
Outstanding Bearing and Wear Properties

Limitations

Chemical Resistance to Some Strong Acids and Bases
Hydrolyzes in Presence of Steam

Applications

Bushings & Bearings
High Purity Semiconductor Applications
Insulating Components for Welding & Brazing Equipment
Pump & Valve Applications
Semiconductor Plasma Applications
Wafer Handling Components

Resin Trade Names

Manufacturer Trade Names

TECASINT® 2011

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Safety Data Sheet

Typical Properties of TECASINT ® 2011 PI

DETAIL
Description			Value
Material Type			Imidized Amorphous Thermoplastic
Chemical Name			PI Polyimide
Trade Name			TECASINT® 2011
Additives			Unfilled
Manufacturer			Ensinger
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.38
	ASTM D792	lb/in³	0.05
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.24
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	17,110
Tensile Modulus	ASTM D638	psi	681,500
Tensile Elongation at Break	ASTM D638	%	4.4
Flexural Strength	ASTM D790	psi	25,700
Flexural Modulus	ASTM D790	psi	522,000
IZOD Impact-Notched	ASTM D256	ft-lb/in	41.8
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3
Heat Deflection Temp	ASTM D648	°C at 264 psi	316
	ASTM D648	°F at 264 psi	600
Max Continuous Operating Temp		°C	280
		°F	536
Minimum Operating Temp		°C	-195
		°F	-319
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.53
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	544
Surface Resistivity	ASTM D257	ohm/square	10^16
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECSINT® is a registered trademark of Ensinger.
