General Info
One of our most commonly used materials due to its ability to provide excellent performance in a wide range of applications and environments. 100% polyester material (textile and resin) with the solid lubrication additives PTFE and molybdenum disulfide (MoS2) evenly dispersed throughout the resin. Enhancement A is added, increasing the overall strength and reduce friction and wear.
Click for more information on the complete line of CIP Composites
Key Properties
- Self lubricating
- Low coefficient of friction
- High edge and shock load capabilities
- High load capacity
- Negligible water swell
- Environmentally friendly
- Anisotropic Properties - Will Vary When Comparing Values Normal or Parallel to Laminate
- Compressive Strength, Breaking – ASTM D695 - Normal to Laminate = 50,000 PSI
- Compressive Strength, Breaking – ASTM D695 - Parallel to Laminate = 13,500 PSI
- CLTE Will Also Vary Based on Laminate Orientation – Contact Boedeker for Full Specifications
Limitations
- Not Intended for High Speed Bearing Applications, Ideal for High Load & Slow Rotating Speed
Applications
- Hydraulic Cylinder Pivot Bushing
- Wear Pads Inside Pipehandling Assembly
Resin Trade Names
Manufacturer Trade Names
- CIP Marine
- CIP101
- CIP111
- CIP121
- CIP131
- CIP131A
- CIP151
- CIP151A
- CIP153A
- CIP251A
- CIP252B
- CIP333A
- CIP353A
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes

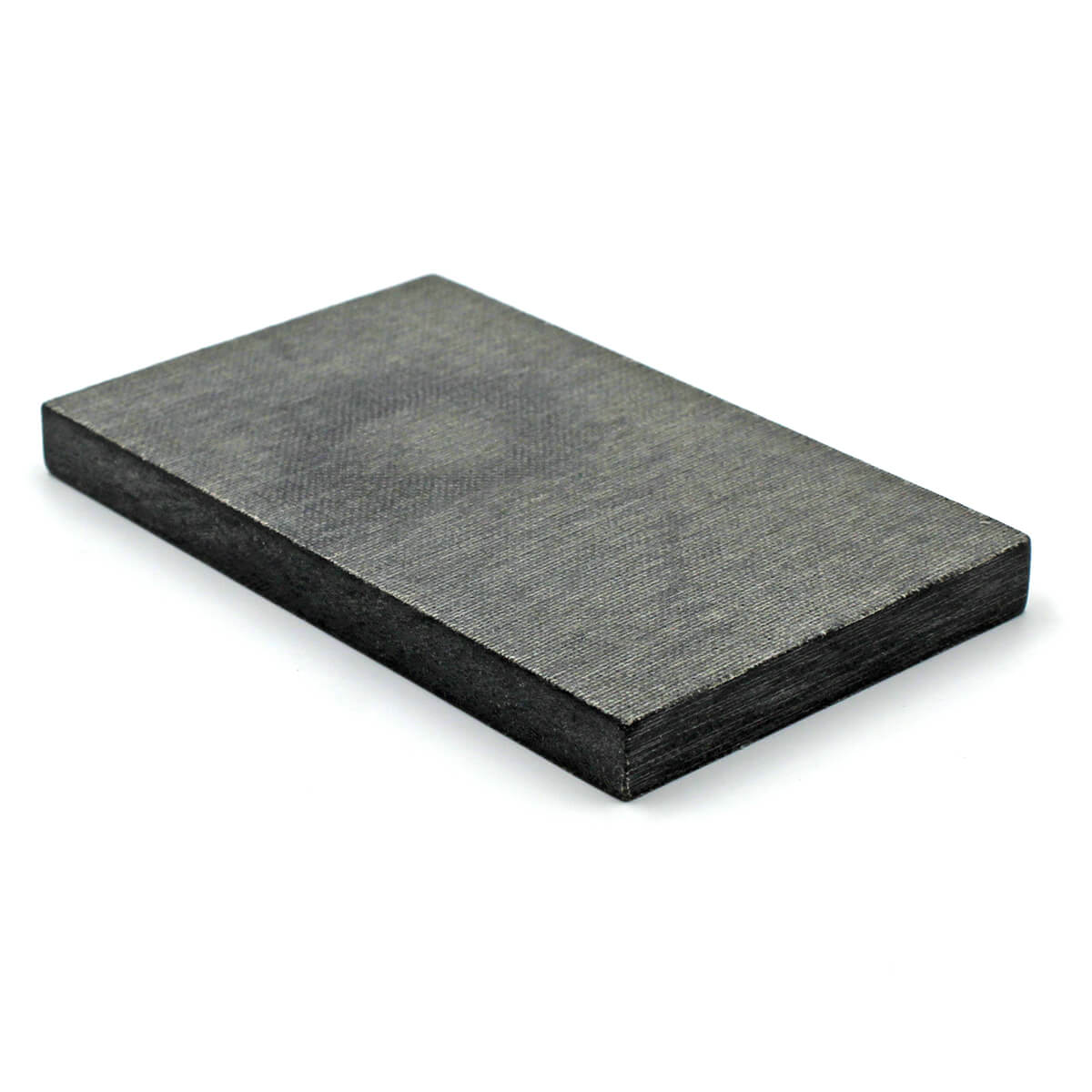

Sheet
Thickness .125" to 6.000"
Standard Widths 16.000", 24.000" & 32.000"
Standard Lengths 24.000", 36.000", 48.000" & 50.000"
Tube
Maximum Outside Diameter 65.000"
Minimum Inside Diameter 0.500"
Standard Lengths 16.000", 24.000" & 32.000"
