General Info

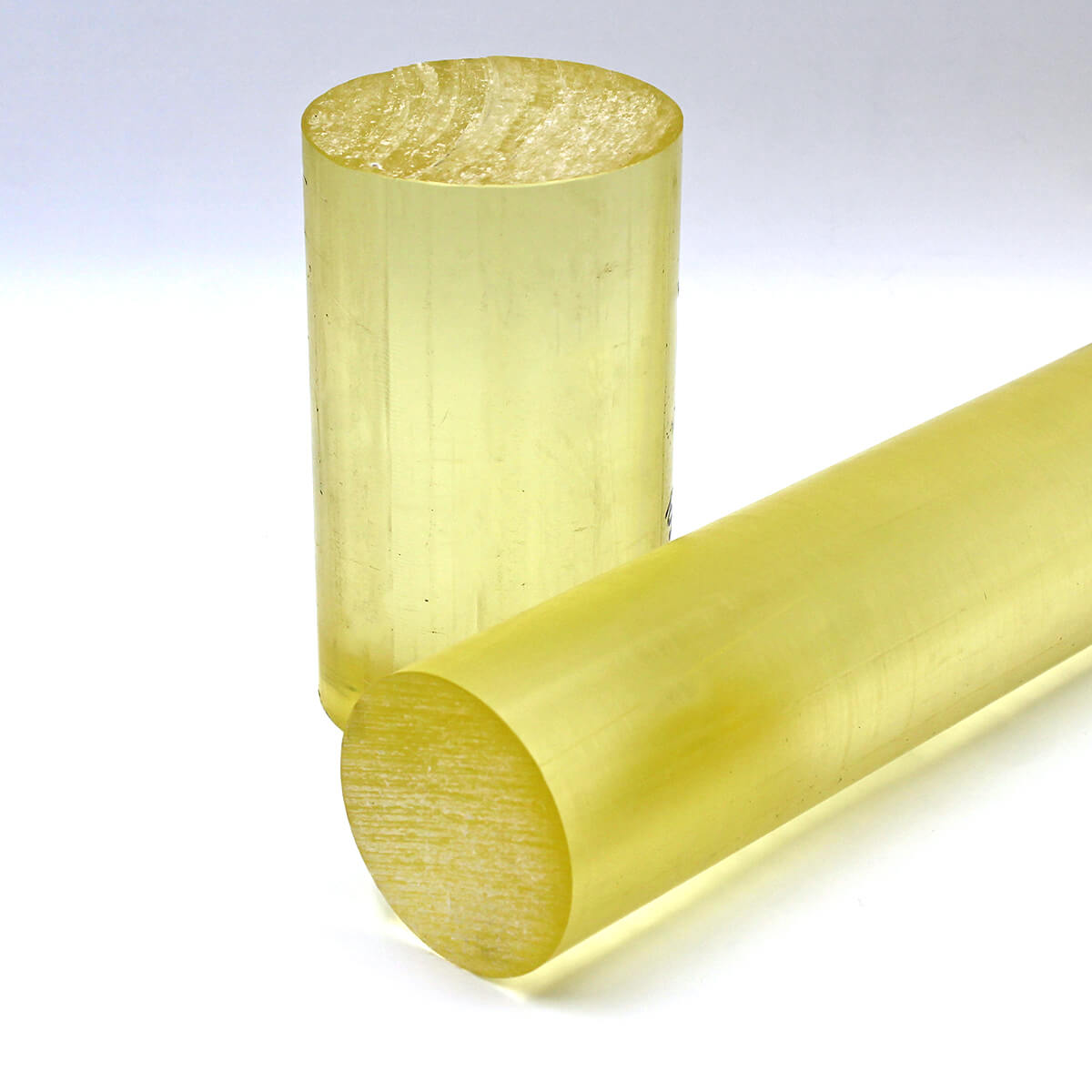

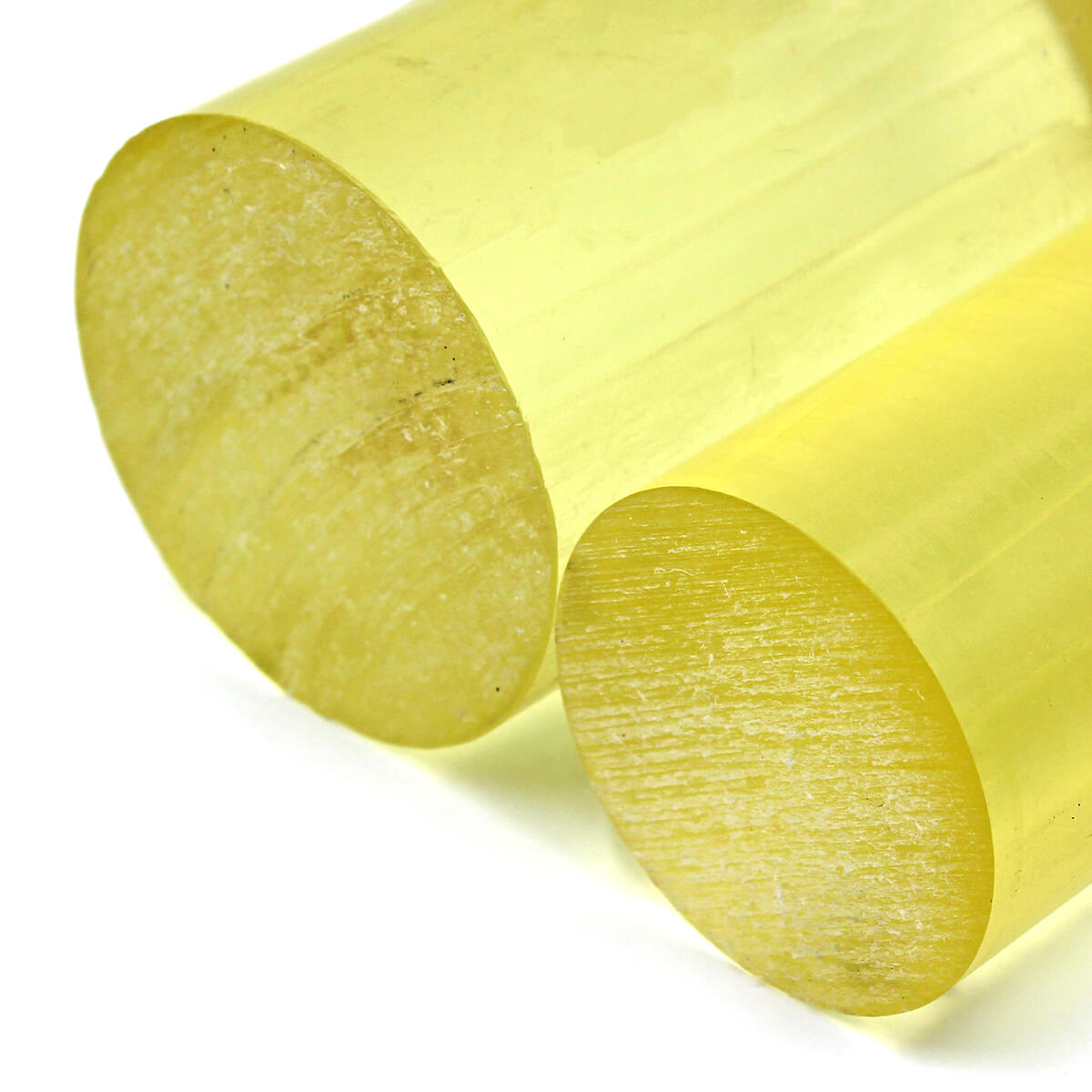

Hydex® 301 is transparent rigid polyurethane that combines excellent clarity when polished with a broad range of chemical resistance and outstanding practical toughness.

Click for more information on the complete line of Hydex Plastic Products

Key Properties

  • Good Chemical Resistance
  • Good Impact Strength & Toughness
  • Transparent

Limitations

  • Hygroscopic; High Moisture Absorption
  • Low Heat Deflection Temperature

Applications

  • Site Glasses
  • Structural Components

Resin Trade Names

  • Isoplast® 301

Manufacturer Trade Names

  • HYDEX® 301

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Translucent
  • Transparent (When Polished)

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of HYDEX ® 301 PU

DETAIL
Description Value
Material Type Amorphous Thermoplastic
Chemical Name PU Polyurethane
Trade Name HYDEX® 301
Additives Unfilled
Color Translucent / Transparent (When Polished)
Manufacturer Ensinger
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.2
  ASTM D792 lb/in³ 0.043
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.19
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 10,000
Tensile Modulus ASTM D638 psi 310,000
Tensile Elongation at Break ASTM D638 % 140
Flexural Strength ASTM D790 psi 14,000
Flexural Modulus ASTM D790 psi 340,000
IZOD Impact-Notched ASTM D256 ft-lb/in 2.4
Static Coefficient of Friction NA 0.22
Dynamic Coefficient of Friction Dynamic, 40 PSI, 50 FPM NA 0.21
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 3.4
Heat Deflection Temp ASTM D648 °C at 264 psi 77
  ASTM D648 °F at 264 psi 170
Max Continuous Operating Temp °C 109
  °F 228
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
Relative Cost $$$
Machinability 3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

HYDEX® is a registered trademark of Ensinger. Isoplast® is a registered trademark of The Lubrizol Corporation.
