General Info

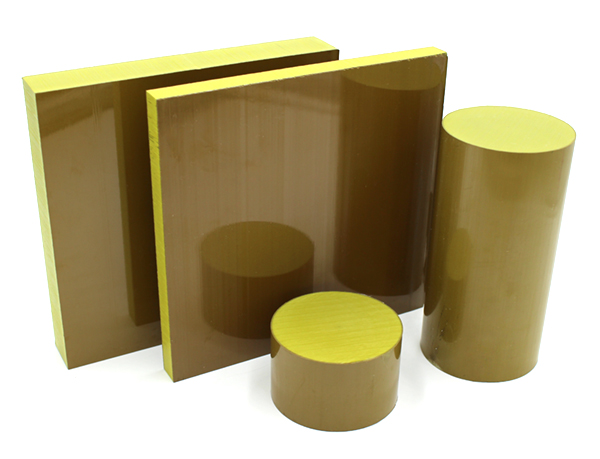

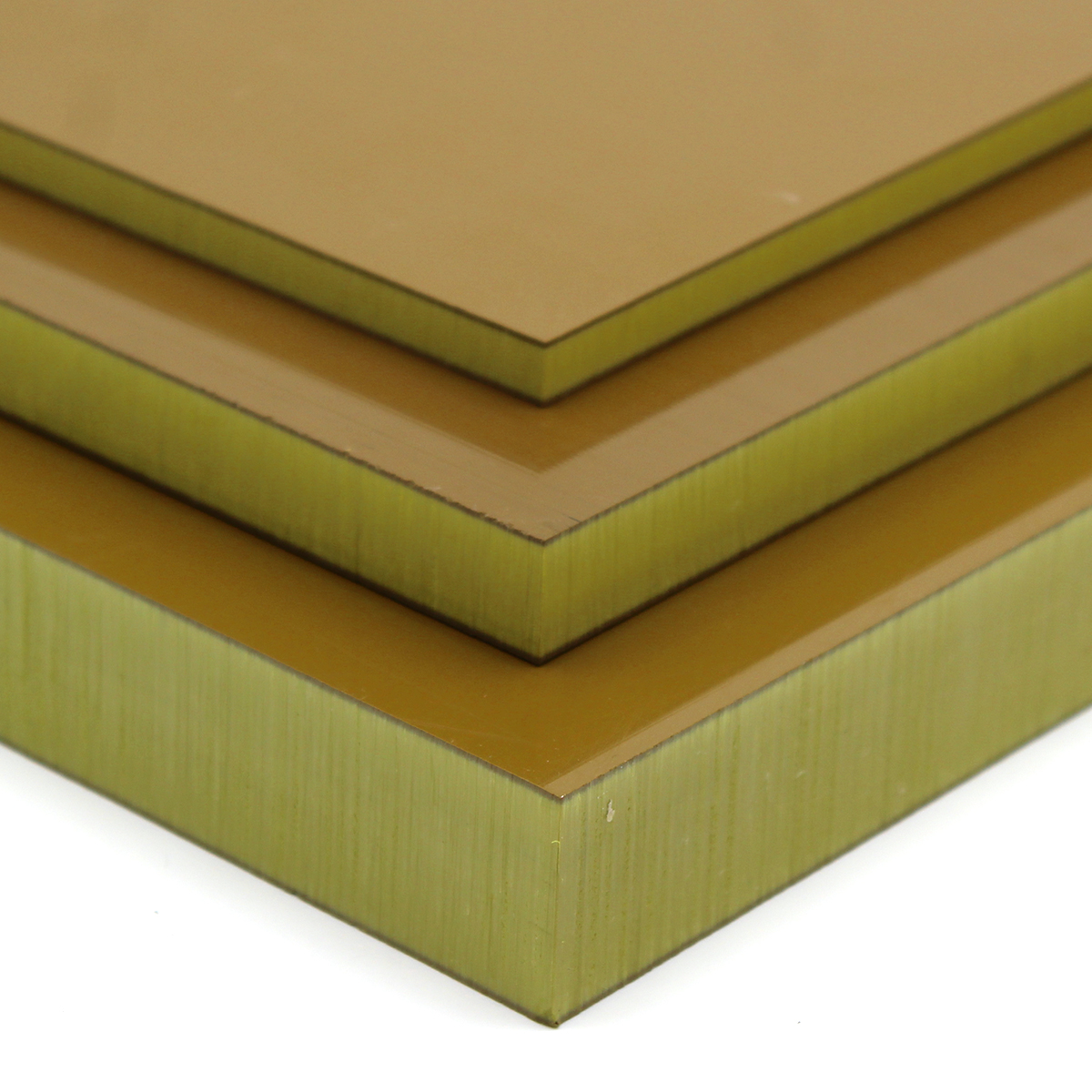

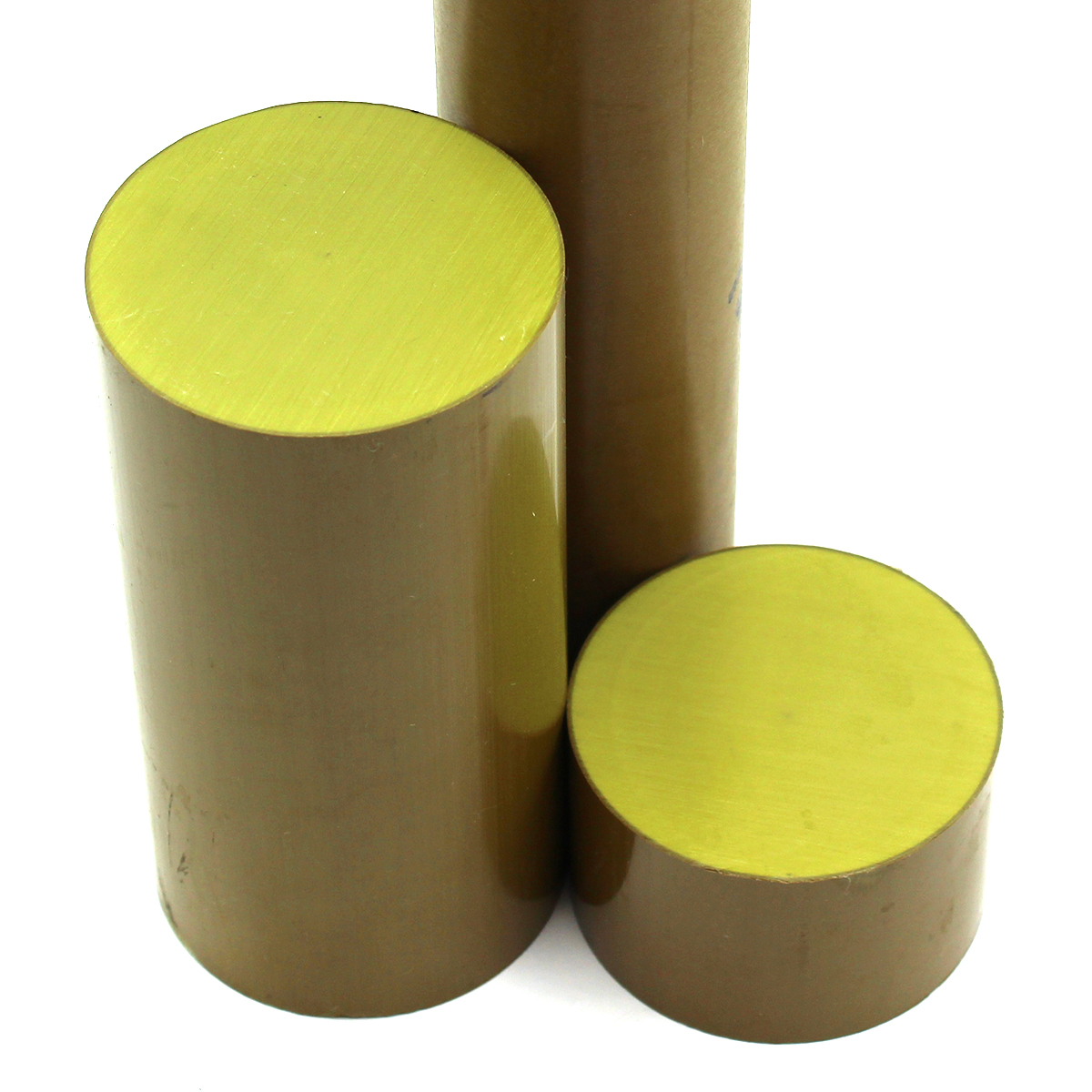

Extruded Duratron® T4203 PAI polyamide-imide offers excellent compressive strength and the highest elongation of the Duratron® grades.
It also provides electrical insulation and exceptional impact strength. This grade is commonly used for electrical connectors and insulators due to its high dielectric strength. Its ability to carry high loads over a broad temperature range makes it ideal for structural components such as linkages and seal rings. Duratron® T4203 PAI is also an excellent choice for wear applications involving impact loading and abrasive wear.
Duratron® T Grades are molded from Torlon® resin using MCAM’s proprietary processing technologies.
Click For More Information on the Complete Line of Duratron® T PAI Products
Key Properties
- Thermal Performance to 500°F (260°C) Continuous Use Temp
- Creep Resistant
- Excellent Wear Properties
- High Outstanding Electrical Properties
- Highest Impact Strength of all PAI Grades
- Low Outgassing Material
- Total Mass Loss (TML%) 1.85%
- Collected Volatile Condensable Materials (CVCM%) 0.00%
- Water Vapor Regained (WVR%) 0.49%
Limitations
- Duratron® T PAI Grade Materials have a relatively high moisture absorption rate, parts used in high temperature service or made to tight tolerances should be kept dry prior to installation.
- Thermal shock resulting in deformation can occur if moisture laden parts are rapidly exposed to temperatures above 400°F (205° C).
- Chemical Resistance to Strong Bases, Steam and Some High Temperature Acids
Applications
- Bushings & Bearings
- Cams
- Connectors
- High Temp High Strength Electrical Housings
- Oil & Gas Down Hole Components
- Semiconductor Test Sockets
- Thrust Washers
- Wear Rings
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
